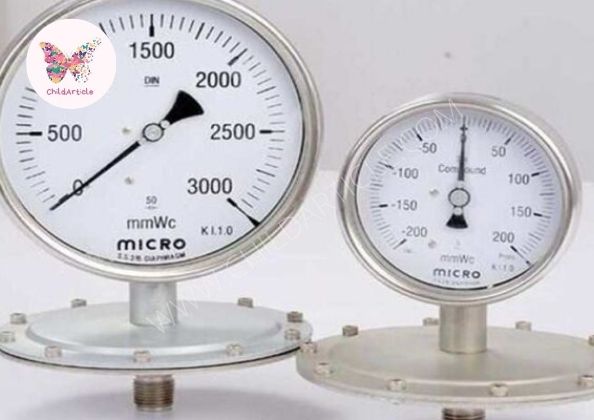

A diaphragm pressure gauge, also called as a membranes pressure sensor, is a device that measures the pressure of a liquid in a system by deflection of a pliable thin membrane termed the ‘diaphragm.’ The membrane separates the pressure gauge’s inner related to physical from the media, extremely important to maintain. The diaphragm pressure gauge can be used with corrosive or polluted liquid or gaseous media because of this feature.
This pressure regulator is meant to measure low pressures which can be used to measure air pressure or monitor pressure in a gas canister, for example. More data on several types of pressure sensors can be found in our articles on bourdon tube gauges, flexible pressure gauges, and liquid pressure sensor.
Table of Contents
Principle of Operation
Low pressure Diaphragm gauges feature a straightforward functioning mechanism, as shown in Figure 2. It is made up of a diaphragm (B), which is a thin circular metal sheet that can be flat or corrugated. When stress is put, the diaphragm displacement ought to be linear. Only tiny deflections may be guaranteed with a flat diaphragm. As a result, a corrugated diaphragm is chosen for industrial applications. The diaphragm can be welded or clamped in place between the flanges. In sanitary applications, the welded diaphragm is normally preferred to avoid any potential leakage.
The damper divides the surroundings within the gauge, allowing one end to be exposed to the ambient while the other is sealed. When working with harsh or thick fluids, this media segregation provides a protective gauge elements.
Selection Criteria
- Chemical compatibility: The gauge’s housing material, particularly the sections that come into touch with the media, ought to be chemically compatible. Stainless steel is the preferable material for diaphragm pressure gauges since they are frequently used with corrosive and highly viscous fluids. Aluminum and copper are two more common house materials.
- Ranges of pressure: For low-pressure measuring applications, a diaphragm pressure gauge is an excellent choice. The pressure gauge must be able to resist the min and max pressure ranges for general cases. The pressure head for the full-scale range should not exceed 75 percent, and for the pulsing range, it should not exceed 65 percent.
- Diaphragmatic size: The usual rule of thumb when choosing a diaphragm size is that the lower the pressure, the bigger the diaphragm size, and inversely. The diaphragm ought to be large enough to shift a substantial quantity of fluid volume during pressure sensor. Greater volume displacement is necessary for low-pressure measurements, which necessitates the use of a larger diaphragm. Similarly, for high-pressure measurements, a tiny diaphragm with a low volume displacement is generally adequate.
- Crystallizing and polluted fluid media, unlike other violent media, can choke the tiny pressure entrance point or even the pressure container. To avoid this danger, use a diaphragm pressure gauge with just an open connecting flange to prevent clogs.
- Pressure unit: The bars or psi is the pressures measurement unit for the diaphragm flow meter. The pressure ranges from -1 to 400 bar in most cases.
Types
- Low-Pressure Diaphragm Vacuum Gauge with 212″ Diaphragm
For pressures and vacuum operations up to and beyond 10 psi, the low-pressure diaphragm gauge is the pinnacle in both accuracy and performance. These applications can be found in vacuum controllers. This sophisticated design, combined with a high-precision, grinded brass movement, gives the user an unrivalled low-pressure device.
- Diaphragm Gauges for Low Pressure
With pressure and suction applications up until and including 10 psi, the low-pressure diaphragm gauge is the apex in both accuracy and performance. Gas-draft monitoring, airflow & filtering, and leak detection are only a few examples. A single beryllium-copper diaphragm is mounted to a precisely machined metal plate in the D2507/D2507L. This sophisticated design, combined with a high-precision, grinded brass movement, gives the user an unrivalled low-pressure device.
- Pressure gauge with a metal diaphragm
For pressures and suction situations up until and including 10 psi, the low-pressure delta gauge is the pinnacle in both accuracy and performance. Gas-draft detection, airflow & filtration, and leak detection are only a few examples. A single beryllium-copper diaphragm is mounted to a precisely machined brass plate in the D2567/D2567L. This sophisticated design, combined with the high, milled-teeth brass mechanism, gives the user an unrivalled low-pressure gauge.
- Low-Pressure Diaphragm Manometer for MRI
In pressure and suction operations up to and including 10 psi, this MRI low-pressure membrane gauge is the pinnacle both in efficiency and durability. Anesthesia machines, ventilators, and other similar devices are examples of such applications. A single beryllium-copper membrane is mounted to a precisely machined metal plate in the D2517/D2517L. This sophisticated design, combined with the high, milled-teeth metal mechanism, gives the user an unrivalled low-pressure device.
Applications
Several industries have effectively used diaphragm pressure transducers for both absolute and divergent pressure monitoring applications. It is suitable for usage in applications wherein purity is sought due to its capacity to segregate media and prevent contamination. It’s also appropriate for industries that work with corrosive fluids. The following industries may benefit from the use of a diaphragm pressure gauge:
- Pharmaceuticals and food and beverage
- Petrochemical
- Petrochemical
Apart from the ones mentioned, pressure gauges are utilised in a wide range of applications. There are pressure gauges designed for vacuum cleaners, compressed air, hydraulic purposes, and even private swimming filters.
